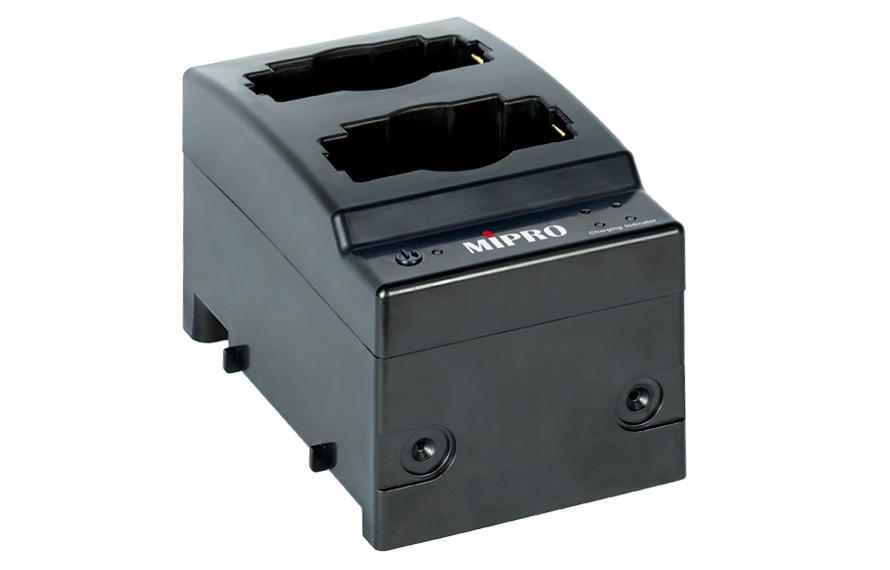

MP-820 Dual-slot Charging Station
*The product images and specifications shown on our website may differ from the actual products due to different versions.
- Designed exclusively for MIPRO rechargeable transmitters with charging contacts.
- Allows for charging two handheld / bodypack transmitters.
- Indicators display charging status.
- The bottom of the charger has reserved cable management space, effectively reducing the risk of the power plug being bumped and detached.
- The connecting accessories allow for easy setup of a large-scale charging system.
Product Introduction
| Model | MP-820 |
|---|---|
| Name | Dual-slot Charging Station |
| Input Voltage | 10 – 15 V / 1 A |
| Output Voltage | 5.3 V |
| Max. Output Current | 0.6 A each slot |
| Indicators | Power indicator and charging status indicators |
| Compatible Models | ACT-800H, ACT-800T, ACT-700H, ACT-700T, ACT-500H, ACT-500T |
| Color | Black |
| Dimensions | 150 × 91 × 92 mm (W × H × D) |
| Weight | Approx. 258 g |
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
MP-820 | Dual-slot Charging Station (Ver.2024) | 0.16M | 2024/03/22 |  |
|
| User Guide | |||||
|---|---|---|---|---|---|
 |
MP-820 | Dual-slot Charging Station | 1.70M | 2024/04/03 | |
|
