MWC PC interface management software
- MIPRO's new PC interface management software, MWC (MIPRO Wireless Console), supports MIPRO ACT-800, ACT-700 and ACT-500 series.

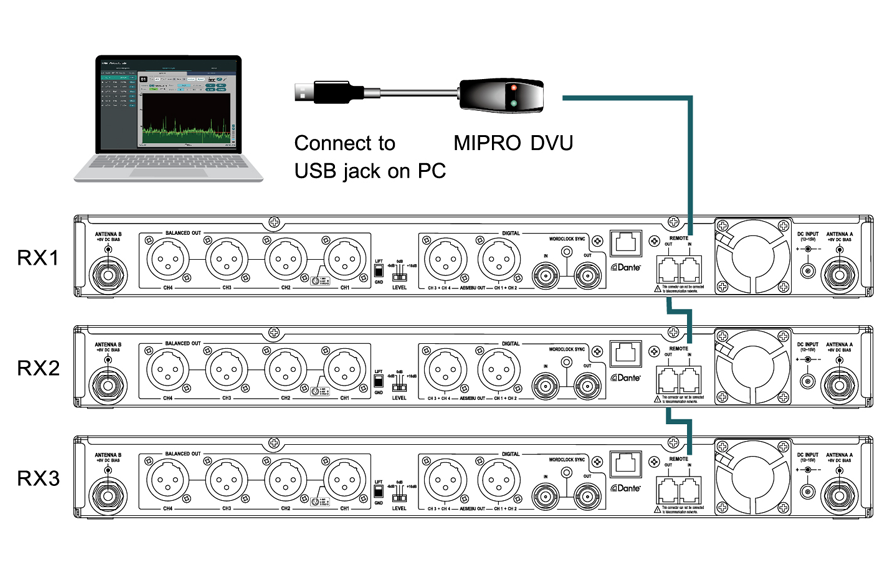

- The interface links a PC to the receiver via MIPRO DVU USB connector, supporting up to 64 channels.
- Users can set, download, and save parameters for each channel.
- The software includes a built-in spectrum analyzer for automatic channel scanning, interference-free frequency configuration, and monitoring of all channels and interference signals.
- The software is also capable of monitoring transmitter battery status, AF/RF and Antenna A/B strength.
Functions
MWC comprises three main parts. You can set up the MIPRO wireless system using the following simple steps:
-

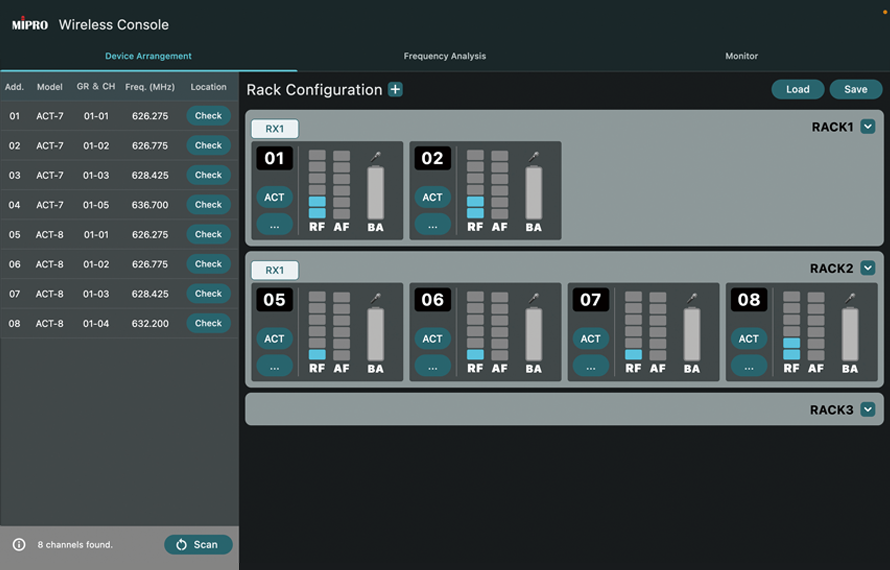

Device Arrangement
Intuitively organizing and identifying your devices.
-

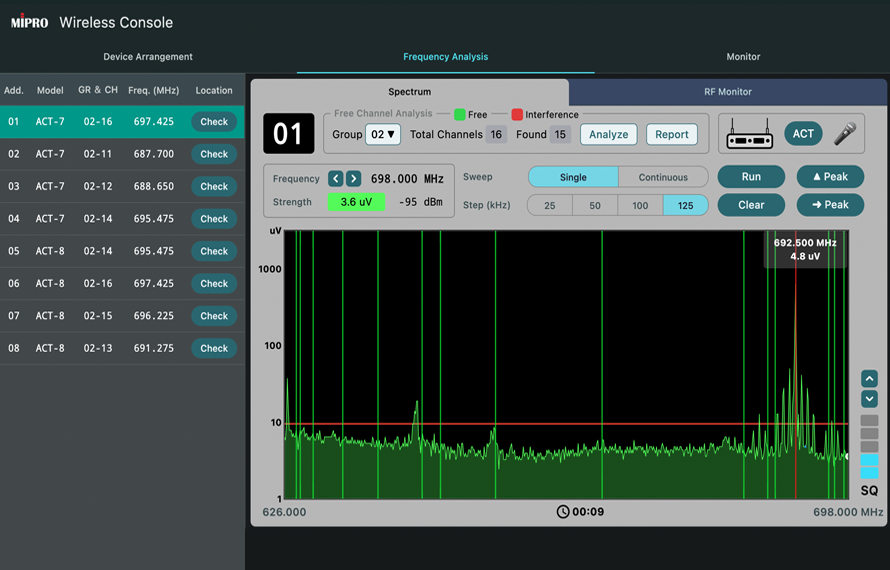

Frequency Analysis
Checking background RF noise to ensure the proper functioning of all devices.
-

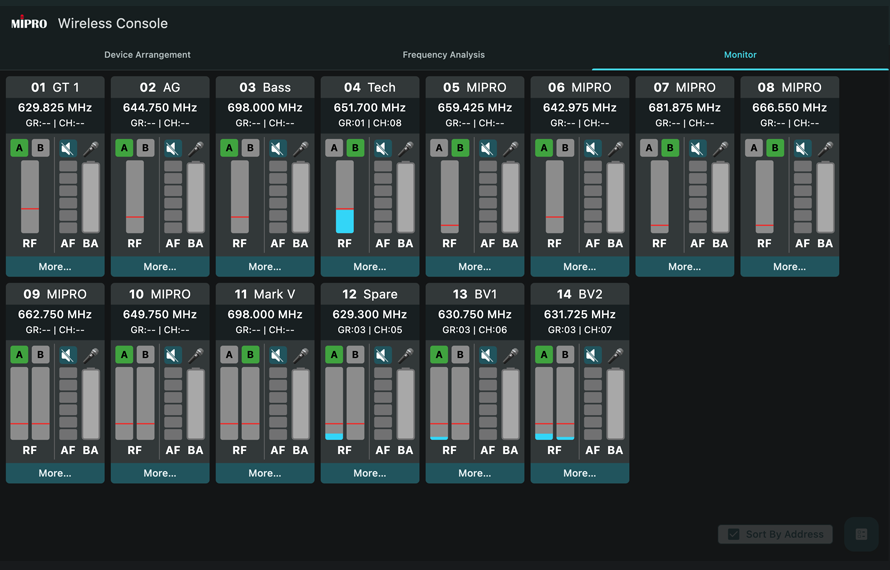

Monitor
Monitoring all or designated devices, even transmitter battery status, AF/RF signal strength, and Antenna A/B strength as needed.
Product Introduction
| Model | MWC |
|---|---|
| Name | PC interface management software |
| Supported Products | ACT-800 Series, ACT-700, ACT-500 Series |
| Hardware Requirements | MIPRO DVU |
| Supported OS | Win 11 / Win 10 / Win 8 / macOS 14.7, supporting the M1 system |
| Driver | DVU driver update: Download |
| Note | Refer to the actual product in the event of product discrepancy |
Related Videos
-
MIPRO Wireless Console Quick Start Guide | MWC
Download
| Software | |||||
|---|---|---|---|---|---|
 |
MWC Software (Windows) | MIPRO Wireless Console for Windows Ver.0.9.5 (ACT-500 Series / ACT-515 / ACT-525 / ACT-545 / ACT-700 Series / ACT-727 / ACT-747 / ACT-800 Series / ACT-818 / ACT-828 / ACT-848) | 20.76M | 2024/10/30 |  |
|
|
MWC Software (MacOS) | MIPRO Wireless Console for MacOS Ver.0.9.5 (ACT-500 Series / ACT-515 / ACT-525 / ACT-545 / ACT-700 Series / ACT-727 / ACT-747 / ACT-800 Series / ACT-818 / ACT-828 / ACT-848) | 32.44M | 2024/10/30 | |
|
