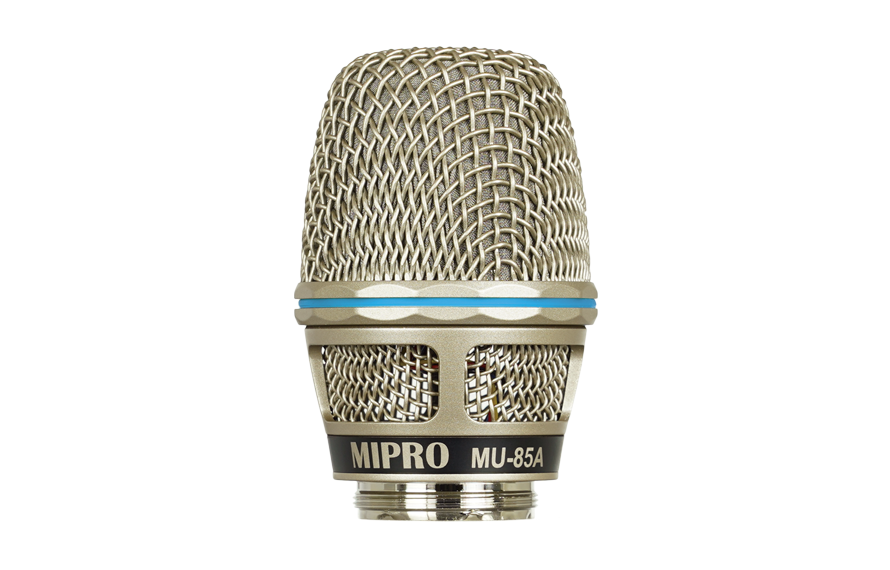

MU-85A Cardioid Condenser Microphone Capsule Module
*The product images and specifications shown on our website may differ from the actual products due to different versions.
- The coupled capsule circuit features high S/N ratio and low noise, and is able to isolate high-frequency digital noise.
- High separation, full-range directionality, wider pick-up angles, balanced high-frequency response and superb feedback suppression.
- Precise sensitivity at -53 dBV.
- Patented shock absorber for ultra-low handling noise and resistant to impact.
- Presents a high dynamic range, wide frequency response, high fidelity, rapid transient response and low feedback for bright and detailed sound quality. Ideal for vocalists or singers.
Product Introduction
| Model | MU-85A |
|---|---|
| Name | Cardioid Condenser Microphone Capsule Module |
| Type | Condenser |
| Frequency Response | 50 Hz – 19 kHz |
| Polar Pattern | Cardioid |
| Max. SPL | 149 dB |
| Sensitivity | -53 dBV / Pa |
| Upper Grille | Detachable multi-layered anti-pop metal grille with a flat top |
| Lower Grille | The metal grille of the semi-sphere structure with four air chambers |
| Middle Ring | Anti-rolling design with a color ring |
| Color | Champagne Gold / Black |
| Dimensions | 51 × 78 mm (Ø × L) |
| Weight | Approx. 144 g |
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
MU-85A | Cardioid Condenser Microphone Capsule Module (Ver.2024) | 0.22M | 2024/03/25 |  |
|
