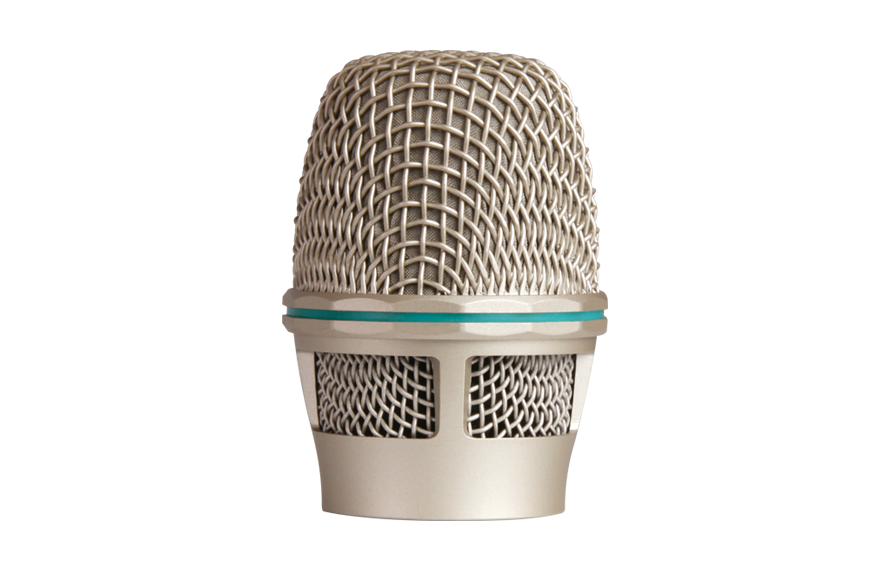

MU-80 Cardioid Condenser Capsule Module
*The product images and specifications shown on our website may differ from the actual products due to different versions.
- The PCB is encapsulated inside the bracket and isolated from the air to ensure the reliability.
- High dynamic range, high S/N ratio and low noise.
- Patented shock absorber for low handling noise.
- Features a unique anti-pop multi-layered metal grille. Presents a high dynamic range, wide frequency response, high fidelity, rapid transient response and low feedback for a bright and detailed sound quality.
Product Introduction
| Model | MU-80 |
|---|---|
| Name | Cardioid Condenser Capsule Module |
| Grille Structure | Upper grille and lower grille can be separated/td> |
| Polar Pattern | Cardioid |
| Operating Principle | ECM |
| Capsule Unit | ECM-20a aluminum grille |
| Middle Ring | Patented anti-rolling design with a color ring |
| Upper Grille | Multi-layered anti-pop metal grille with flat top |
| Lower Grille | Metal grille of semi-sphere structure with four air chambers |
| Installation | Interchangeable |
| Color | Champagne |
| Inner Grille | Dual-layer metal mesh |
| Frequency Response | 50 Hz ~ 20 kHz |
| Sensitivity | -53 dB |
| Gain Setting | 0 dB / -6 dB (2 settings) |
| Max. SPL | 149 dB |
| Note | Refer to actual product in the event of product discrepancy. |
