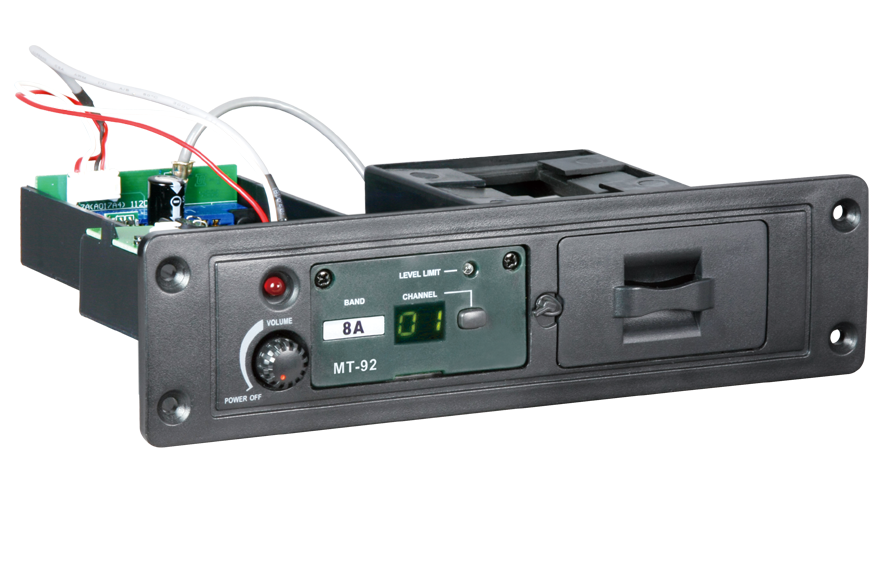

MTM-92 UHF Analog Interlinking Transmitter Module
*The product images and specifications shown on our website may differ from the actual products due to different versions.
UHF
24
LED
- 16 selectable channels.
- Numeric LED display.
- Modularized design allows easy installation and replacement.
Product Introduction
| Model | MTM-92 |
|---|---|
| Name | UHF Analog Interlinking Transmitter Module |
| Frequency Band | UHF 480 – 934 MHz (country dependent) |
| Bandwidth | 24 MHz |
| Preset Channels | 16 |
| Oscillation Mode | PLL synthesized |
| Output Power | 10 or 100 mW switchable (country dependent) |
| Spurious Emissions | < -45 dBm |
| Dimensions | 220 × 57 × 189 mm (W × H × D) |
| Weight | Approx. 410 g |
Download
| DOC | |||||
|---|---|---|---|---|---|
 |
MTM-92 | Interlinking Transmitter Module | 0.37M | 2021/08/12 |  |
|
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
MTM-92 | UHF Interlinking Transmitter Module (Ver.2024) | 0.18M | 2024/03/25 | |
|
| User Guide | |||||
|---|---|---|---|---|---|
 |
MTM Series | UHF Interlinking Transmitter Module (MTM-90 / MTM-92) | 2.01M | 2023/10/04 | |
|
