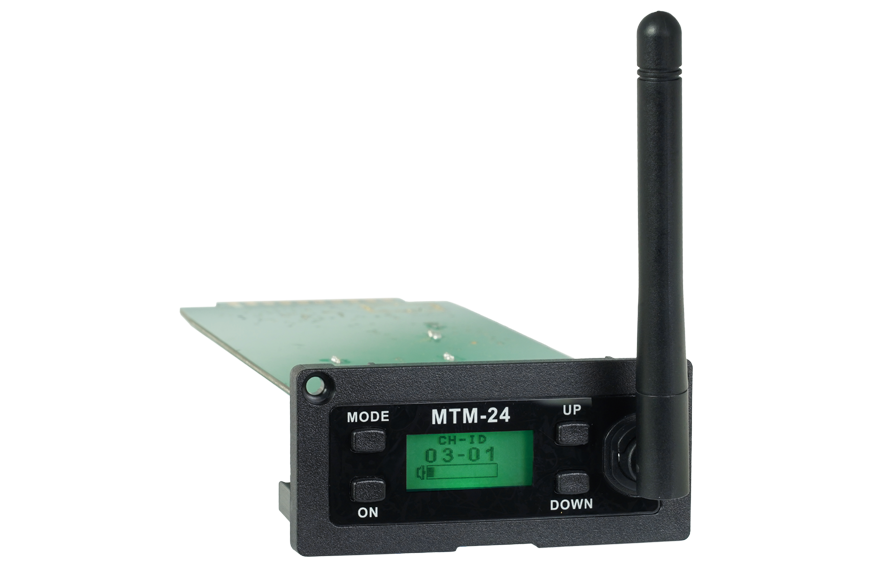

MTM-24 2.4 GHz Digital Interlinking Transmitter Module
*The product images and specifications shown on our website may differ from the actual products due to different versions.
ISM
2.4
LCD
- Compatible with ISM 2.4 GHz receiver modules.
- 12 selectable channels, with LCD display.
- Modular design allows for easy installation and maintenance.
Product Introduction
| Model | MTM-24 |
|---|---|
| Name | 2.4 GHz Digital Interlinking Transmitter Module |
| Frequency Band | ISM 2.4 GHz |
| Bandwidth | 83.5 MHz |
| Preset Channels | 12 |
| Oscillation Mode | PLL synthesized |
| Output Power | 10 mW |
| Spurious Emissions | < -40 dBm |
| Dimensions | 75 × 35 × 165 mm (W × H × D) |
| Weight | Approx. 78 g |
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
MTM-24 | 2.4 GHz Digital Interlinking Transmitter Module (Ver.2024) | 0.16M | 2024/03/25 |  |
|
| User Guide | |||||
|---|---|---|---|---|---|
 |
MTM Series | Interlinking Transmitter Module (MTM-24 / MTM-58 / MTM-91) | 2.03M | 2023/10/04 | |
|
