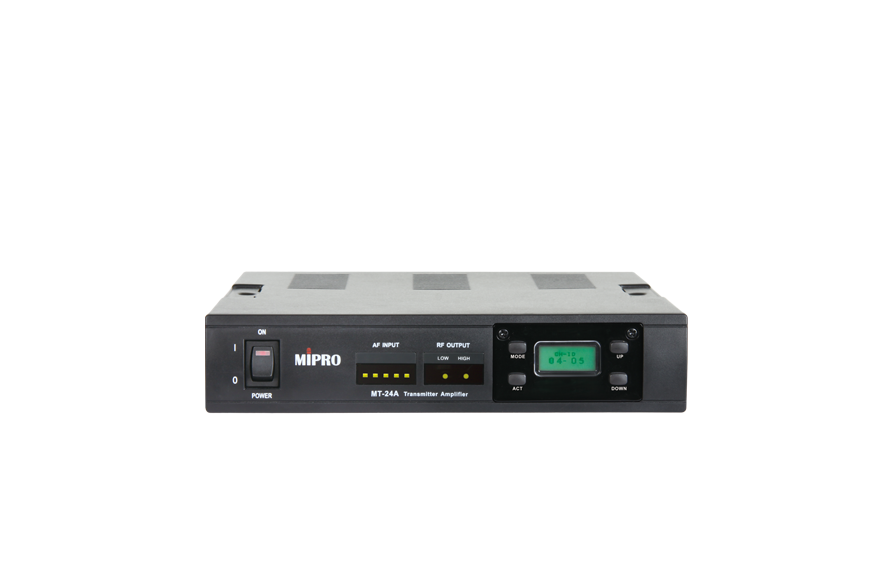

MT-24A 2.4 GHz Digital Interlinking Transmitter
*The product images and specifications shown on our website may differ from the actual products due to different versions.
ISM
24
LCD
- EIA standard half-rack chassis. Connects the outputs of microphones, instruments and other audio equipment with switchable input Mic / Line level.
- Presets 12 channels and 16 ID codes.
- The maximum power output is up to 100 mW.
- Supplies 48 V phantom power for condenser microphones.
- Pairs with the ACT-2400 series or ACT-24R receivers for long-distance wireless transmission.
Product Introduction
| Model | MT-24A |
|---|---|
| Name | 2.4 GHz Digital Interlinking Transmitter |
| Frequency Band | ISM 2.4 GHz |
| Modulation Type | Digital modulation |
| Receiver | ACT-2400 series receivers |
| RF Power Output | Low < 10 mW, High < 100 mW (country dependent) |
| Phantom Power | 48 V |
| Audio Input | XLR / 6.3 mm TRS combo socket |
| Power Supply | DC 12 – 15 V, AC 100 – 240 V |
| Dimensions | 210 × 44 × 203 mm (W × H × D) |
| Weight | Approx. 1.1 kg |
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
MT-24A | 2.4 GHz Digital Interlinking Transmitter (Ver.2024) | 0.20M | 2024/03/22 |  |
|
| User Guide | |||||
|---|---|---|---|---|---|
 |
MT-24A | 2.4 GHz Digital Transmitter | 3.17M | 2021/10/21 | |
|
