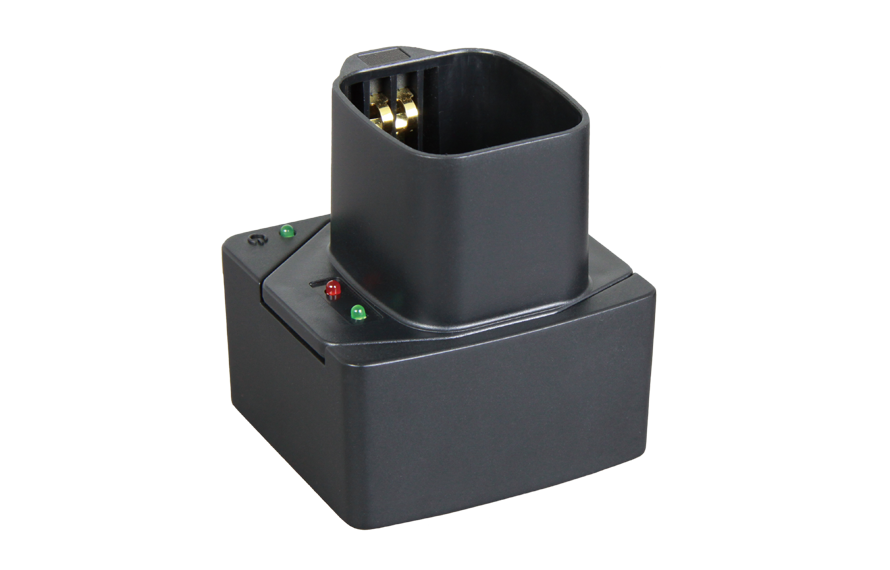

MP-8T Single-slot Charging Station
*The product images and specifications shown on our website may differ from the actual products due to different versions.
LED
- Exclusively designed to charge the TA-80 transmitter.
- An intelligent single-slot charging station that provides efficient and safe charging with constant voltage and current limiting, and a reverse polarity protection circuit to prevent charging errors.
- Red and green indicators show the charging status.
Product Introduction
| Model | MP-8T |
|---|---|
| Name | Single-slot Charging Station |
| Input Voltage | DC 5 V / 1 A |
| Battery | 18500 Li-ion battery 3.7 V |
| Charge Current | Approx. 500 mA constant current. Terminated by 20% max. current |
| Current Consumption | 550 mA / 5 V |
Download
| Spec Sheet | |||||
|---|---|---|---|---|---|
 |
MP-8T | Single-slot Charging Station (Ver.2024) | 0.14M | 2024/03/22 |  |
|
| User Guide | |||||
|---|---|---|---|---|---|
 |
MP-8T | One-slot Charging Station | 0.47M | 2023/03/28 | |
|
