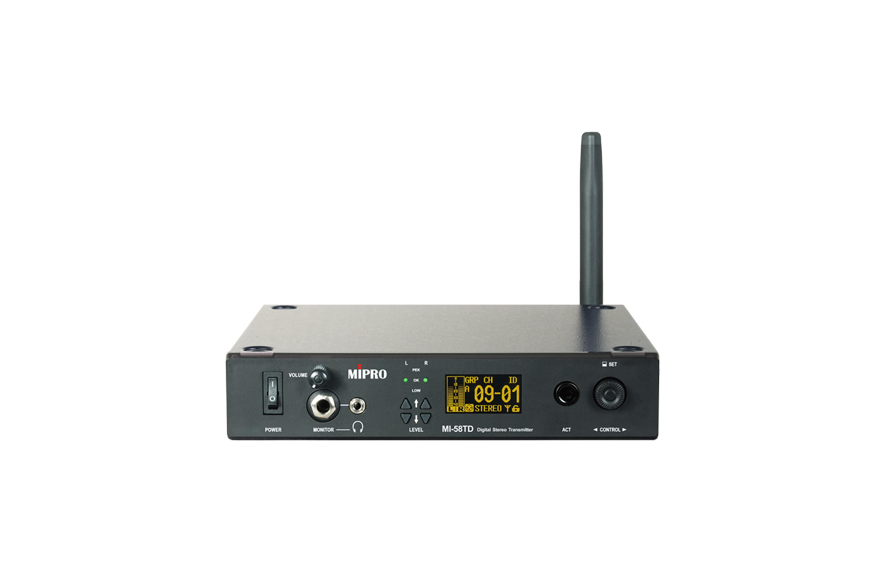

5 GHz Digital Stereo Transmitter MI-58TD

Product Name : 5 GHz Digital Stereo Transmitter

*The product images and specifications shown on our website may differ from the actual products due to different versions.

ISM

OLED

Features Dante networking interface.
Ø 3.5 mm and Ø 6.3 mm dual earphone monitoring connectors and individual volume controls.
The front panel is equipped with a graphic OLED, a rotary knob, an ACT™ sync button, an audio input set button, and the industry’s first LED indicators for clear identification of the input volume to prevent the loudest peaks.
The rear panel is equipped with two XLR and Ø 6.3 mm input combo jacks, two Ø 6.3 mm phone jack loop outputs, TNC RF output connectors, and a DC 12 V power supply.
Delivers < 25 mW output power (the maximum value depends on the telecom regulations of different countries).
Presets several interference-free channels, and can ACT™ sync to the receiver.
With a high dynamic range stereo input combo jack, it can sustain the maximum output from any mixer.
The system offers Engineer Mode (ENG MODE) so the sound engineers have full control in any live performance.

Q'ty :

Inquiry

Product Introduction

Model	MI-58TD
Name	5 GHz Digital Stereo Transmitter
Chassis	EIA standard half-rack (9.5") metal case with a rotary control knob
Display	Graphic OLED displays all functions and settings. LED indicators for proper input stereo signals volume status adjustment
Frequency Band	ISM 5.8 GHz
Preset Channels	Group A presets 12 selectable channels. Group B presets 24 selectable channels, where 12 selectable channels for B1 and 12 selectable channels for B2.
ID Codes	64 ID codes and 1 specific ID are allowed to be set for each channel to prevent the same channel being interfered in the same field.
Channel Setting	ACT™ sync
Audio Sampling	48 kHz / 24-bit
RF Power Output	< 25 mW (CE compliance) or country dependent
Audio Input	2 × XLR / 6.3 mm TRS combo socket
Audio Output	2 × 6.3 mm TRS (Loop Out)
Earphone Output	1 × 6.3 mm and 1 × 3.5 mm TRS with volume control
Networking Interface	1 × RJ-45 DANTE interface 2 × RJ-11 ACT-BUS
Power Supply	DC 12 – 15 V, AC 100 – 240 V
Dimensions	210 × 44 × 162 mm (W × H × D)
Weight	Approx. 860 g

Accessories

AT（ISM）

ISM Antennas

Includes AT-24 2.4 GHz quasi-circularly polarized antenna and AT-58 5 GHz directional antenna, providing an optimized signal transmission of the ISM 2.4 GHz / 5 GHz frequency band.
