UHF BC-T II Series BC-T（UHF）

Product Name : UHF BC-T II Series

*The product images and specifications shown on our website may differ from the actual products due to different versions.

UHF

LCD

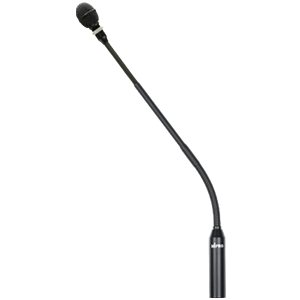

Compatible with MM series 4-pin gooseneck microphones, offering both wired and wireless transmission options.
For wired transmission, connect the base output to a mixer input with phantom power.
The BC-100T II features a built-in 24 MHz transmitter, fully compatible with the ACT-300 / 500 series analog wireless system. The BC-100DT II includes a 72 MHz transmitter, designed for the ACT-800 series digital wireless system, while the BC-100WT incorporates a 72 MHz transmitter compatible with the ACT-700 series analog wireless system. Each model functions just like a bodypack transmitter.
Powered by a rechargeable 18500 lithium-ion battery, which can be charged externally or replaced with a spare battery.
Equipped with TALK and MUTE buttons to control the base indicator light and sync with the LED ring lights of MM-206L, MM-205L, and MM-204L microphones.
The sturdy metal base with a non-slip pad ensures stability and prevents wobbling.

Q'ty :

Inquiry

Model	BC-100T II	BC-100DT II	BC-100WT
Name	UHF Gooseneck Microphone Transmitter Base	UHF Gooseneck Microphone Transmitter Base	UHF Gooseneck Microphone Transmitter Base
Frequency Band	UHF 480 – 934 MHz	UHF 480 – 934 MHz	UHF 480 – 934 MHz
Receiver	ACT-300 / 500 Series	ACT-800 Series	ACT-700 Series
Input Jack	MIPRO 4-Pin XLR, compatible with MM-206L / MM-205L / MM-204L gooseneck microphone	MIPRO 4-Pin XLR, compatible with MM-206L / MM-205L / MM-204L gooseneck microphone	MIPRO 4-Pin XLR, compatible with MM-206L / MM-205L / MM-204L gooseneck microphone
Output Jack	3-Pin XLR	3-Pin XLR	3-Pin XLR
Control Switch	TALK / MUTE switch, with a LED status indicator	TALK / MUTE switch, with a LED status indicator	TALK / MUTE switch, with a LED status indicator
Power Supply	Wired: DC 24 – 48 V phantom power Wireless: one 18500 Li-ion battery	Wired: DC 24 – 48 V phantom power Wireless: one 18500 Li-ion battery	Wired: DC 24 – 48 V phantom power Wireless: one 18500 Li-ion battery
Charging Voltage	DC 5 V / 1 A	DC 5 V / 1 A	DC 5 V / 1 A
Color	Black	Black	Black
Dimensions	100 × 78 × 150 mm (W × H × D)	100 × 78 × 150 mm (W × H × D)	100 × 78 × 150 mm (W × H × D)
Weight	Approx. 710 g	Approx. 710 g	Approx. 710 g

Spec Sheet
	BC-100T II	UHF Gooseneck Microphone Transmitter Base (Ver.2025)	0.27M \| 2024/12/05

User Guide
	BC-T II Series	Wireless Conference Microphone Base (BC-24T II / BC-58T II / BC-100 II / BC-100T II)	7.77M \| 2023/04/25

Spec Sheet
	BC-100DT II	UHF Gooseneck Microphone Transmitter Base (Ver.2025)	0.26M \| 2024/12/26
	BC-100WT	UHF Gooseneck Microphone Transmitter Base (Ver.2025)	0.26M \| 2024/12/26

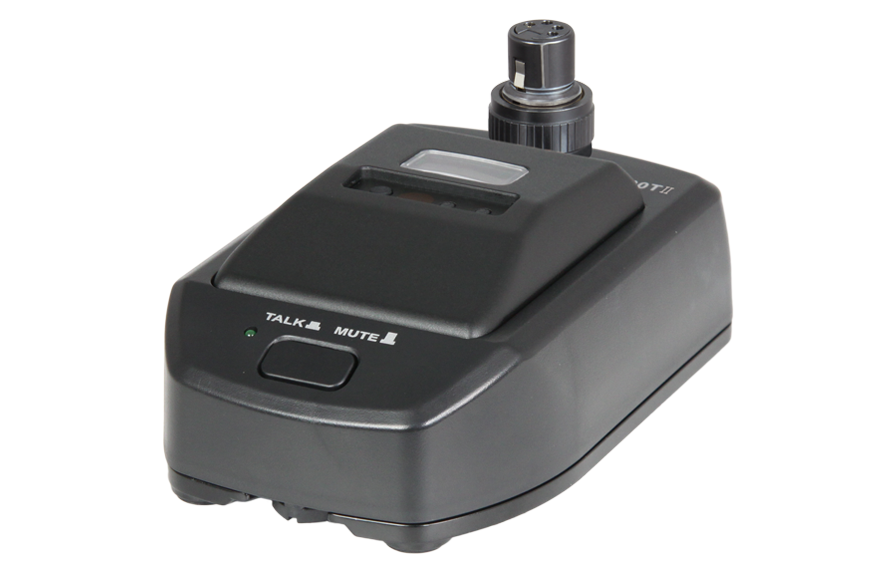

BC-100T II UHF Gooseneck Microphone Transmitter Base
