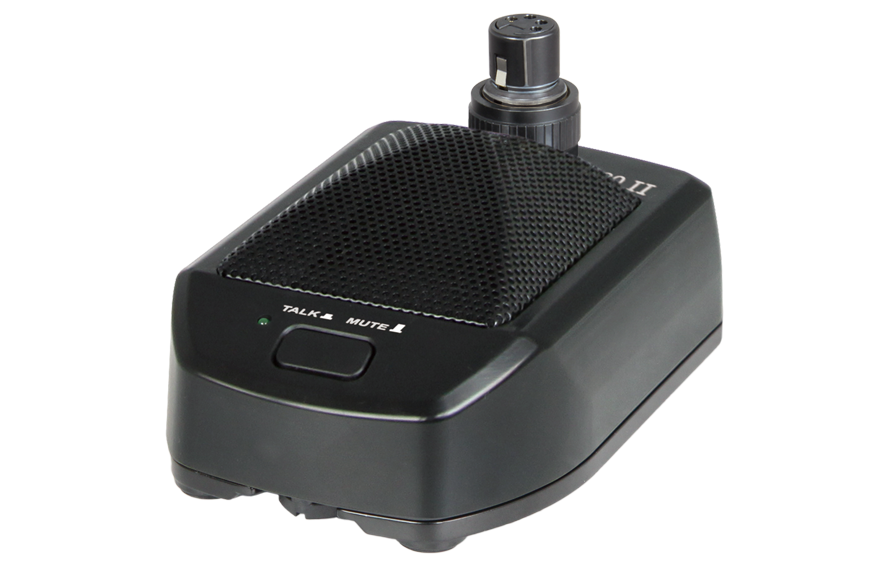

Boundary Microphone Base BC-100II

Product Name : Boundary Microphone Base

*The product images and specifications shown on our website may differ from the actual products due to different versions.

LED

BC-100 II has a built-in high-sensitivity condenser microphone capsule module that can be independently used as a boundary microphone.
BC-100 II can connect with MM-series 4-Pin gooseneck microphone as a wired conference microphone.
Accepts MIPRO ACT-TC series bodypack transmitter as a wireless conference microphone. It can be charged using the included adaptor, no need to remove the transmitter.
A balanced XLR connector for any mixer supplying phantom power and a switch to select the audio source from either the inner boundary microphone or the optional gooseneck microphone.
Press the button to TALK position, the green indicator on the base and LED ring indicator on the MM-206L / 205L / 204L will light up. Press it again to MUTE position, all indicators will turn off.
The metal cover is equipped with anti-slip pads, ensuring the stability.

Q'ty :

Inquiry

Model	BC-100 II
Name	Boundary Microphone Base
Boundary Microphone	10 mm cardioid condenser microphone capsule module
Output Jack	3-Pin XLR
Input Jack	MIPRO 4-Pin XLR, compatible with MM-206L / MM-205L / MM-204L gooseneck microphone
Control Button	TALK / MUTE button with LED indicator
Expansion Function	Insert an ACT-TC series bodypack transmitter for wireless transmission
Power Supply	Wired: DC 24 – 48 V phantom power Wireless: one 18500 Li-ion battery
Charging Voltage	DC 5 V / 1 A
Color	Black
Dimensions	100 × 78 × 150 mm (W × H × D)
Weight	Approx. 620 g
