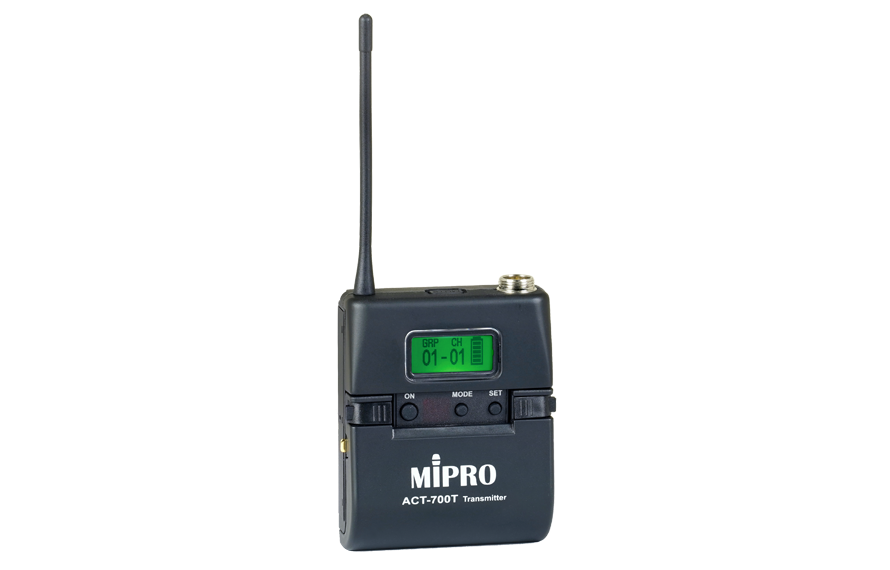

UHF Analog Wideband Bodypack Transmitter ACT-700T

Product Name : UHF Analog Wideband Bodypack Transmitter

*The product images and specifications shown on our website may differ from the actual products due to different versions.

UHF

LCD

Newly designed compact and lightweight housing for easy wearing.
The panel integrates a backlit LCD and setup buttons for easy operation and view of all operating information, and a lockable power switch prevents the power switch from accidental operation.
In addition to the power switch and the mute button, functions such as input sensitivity, low frequency reduction, volume limit, power output, and button lock modes are also programmable.
The world’s first ACT™ function provides precise and rapid frequency sync to the receiver
5 switchable gain levels.
Mute button and remote-control jack allow quick setting of MUTE function.

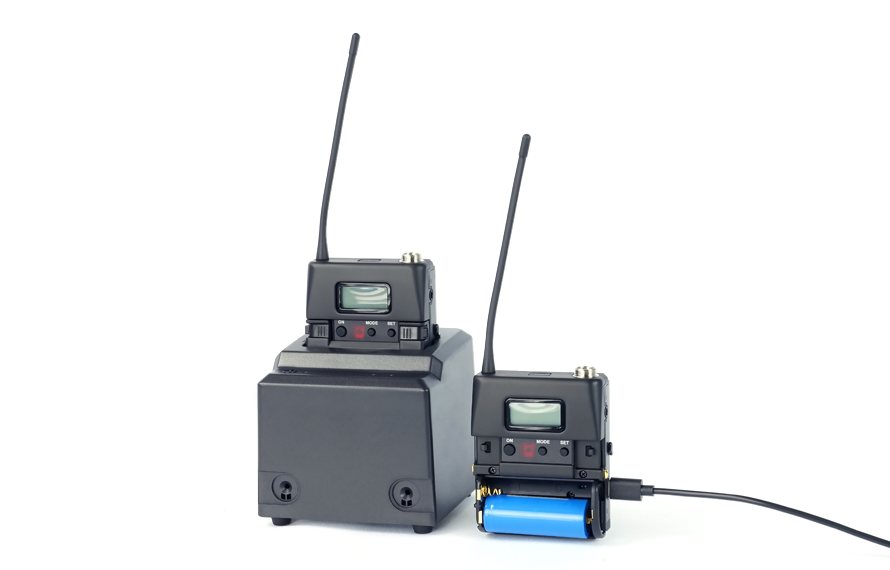

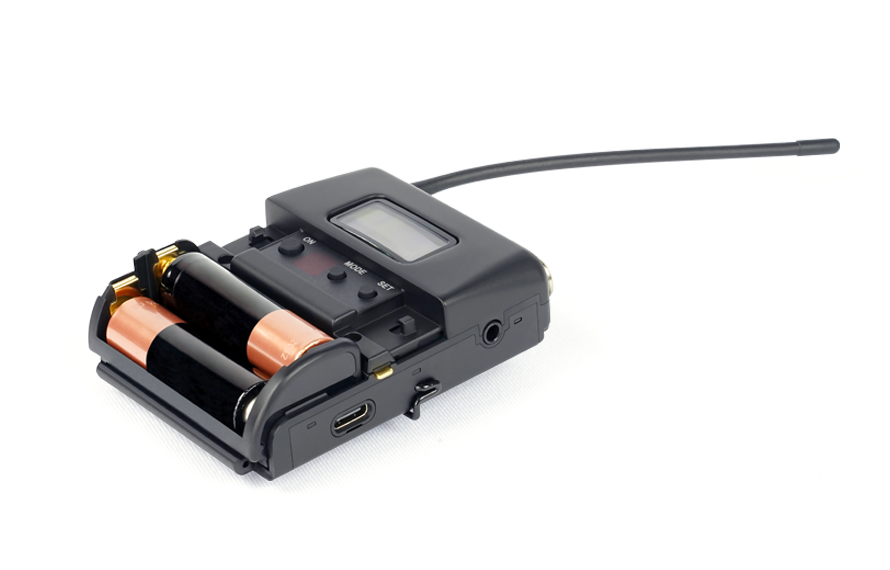

The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. The second-generation ACT-700T features charging contacts and can also be placed on an optional single-slot or dual-slot charging station for charging.
A belt clip for easy wearing.

Q'ty :

Inquiry

Model	ACT-700T
Name	UHF Analog Wideband Bodypack Transmitter
Frequency Range	UHF 480 – 934 MHz (country dependent)
Bandwidth	72 MHz
Display	Backlit LCD
Mic. Capsule Modules	Work with all MIPRO’s lavalier and headworn mics
Input Connector	MIPRO 4-Pin Mini XLR
AF Sensitivity	Preset at 0 dB (equal to capsule sensitivity) 5 switchable levels: -12 dB to 12 dB
Max. Audio Input	0 dBV
RF Power Output	10 mW / 50 mW switchable (country dependent)
Spurious Emission	< 4 nW
Battery Type	One 18500 Li-ion battery or two AA alkaline
Battery Charging	MP-800 / MP-820 charging station or USB Type-C
Dimensions	63 × 80 × 25 mm (W × H × D)
Weight	Approx. 97 g
