Product Name : ACT-5800 Series

*The product images and specifications shown on our website may differ from the actual products due to different versions.

ISM

OLED

The ACT-5801/5802 receiver has a built-in high efficiency antenna on the front panel.
The ACT-5812A/5814A receiver has antenna connectors on the rear panel for connecting the external antenna system.
MIPRO’s unique control panel equips a graphic OLED, providing a larger field of view without a blind angle.
Stable digital modulation circuitry. All frequencies are located in one frequency band.
Dual tuner true diversity receiving ensures long reception distance and eliminates signal drop-out.
ACT-5812A/5814A equipped with TNC connectors for daisy chain output which can be daisy-chained up to three receivers.
MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
Effectively avoids RF interference from UHF, Bluetooth, Wi-Fi and all 2.4 GHz communication products.
Presets Group A and B. There are 12 interference-free channels in Group A and total of 24 interference-free channels in Group B1 & B2.
Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
Pairs with ACT-580H handheld and ACT-580T bodypack transmitter.
All are designed and made in Taiwan to ensure high quality and value.

Q'ty :

Inquiry

Product Introduction

Model	ACT-5801	ACT-5802	ACT-5812A	ACT-5814A
Name	5 GHz Digital Single-Channel Receiver	5 GHz Digital Dual-Channel Receiver	5 GHz Digital Dual-Channel Receiver	5 GHz Digital Quad-Channel Receiver
Channel	Single	Dual	Dual	Quad
Chassis	EIA standard half-rack (9.5") metal chassis	EIA standard half-rack (9.5") metal chassis	EIA standard full-rack (19") metal chassis	EIA standard full-rack (19") metal chassis
Display	Graphic OLED	Graphic OLED	Graphic OLED	Graphic OLED
Frequency Band	ISM 5.8 GHz	ISM 5.8 GHz	ISM 5.8 GHz	ISM 5.8 GHz
Preset Channels	Presets Group A and B. There are 12 interference-free channels in Group A and a total of 24 interference-free channels in Group B1 & B2. 64 ID codes and 1 specific ID are allowed to be set for each channel to prevent the same channel being interfered on the same occasion.	Presets Group A and B. There are 12 interference-free channels in Group A and a total of 24 interference-free channels in Group B1 & B2. 64 ID codes and 1 specific ID are allowed to be set for each channel to prevent the same channel being interfered on the same occasion.	Presets Group A and B. There are 12 interference-free channels in Group A and a total of 24 interference-free channels in Group B1 & B2. 64 ID codes and 1 specific ID are allowed to be set for each channel to prevent the same channel being interfered on the same occasion.	Presets Group A and B. There are 12 interference-free channels in Group A and a total of 24 interference-free channels in Group B1 & B2. 64 ID codes and 1 specific ID are allowed to be set for each channel to prevent the same channel being interfered on the same occasion.
Receiving Mode	True diversity	True diversity	True diversity	True diversity
Sample Rate	48 kHz / 24-bit	48 kHz / 24-bit	48 kHz / 24-bit	48 kHz / 24-bit
Frequency Response	18 Hz – 23 kHz	18 Hz – 23 kHz	18 Hz – 23 kHz	18 Hz – 23 kHz
Latency	< 1.5 ms (Group B)	< 1.5 ms (Group B)	< 1.5 ms (Group B)	< 1.5 ms (Group B)
Dynamic Range	> 120 dBA	> 120 dBA	> 120 dBA	> 120 dBA
Output Connector	Balanced XLR & Unbalanced Ø 6.3 mm phone jack, -10 to +20 dB adjustable range	Balanced XLR & Unbalanced Ø 6.3 mm phone jack, -10 to +20 dB adjustable range	Balanced XLR & Unbalanced Ø 6.3 mm phone jack, -10 to +20 dB adjustable range	Balanced XLR & Unbalanced Ø 6.3 mm phone jack, -10 to +20 dB adjustable range
Antenna	Built-in, front panel	Built-in, front panel	50 Ω TNC female connectors provide bias for boosters. TNC connectors for daisy chain	50 Ω TNC female connectors provide bias for boosters. TNC connectors for daisy chain
Power Supply	DC 12 – 15 V. External AC 100 – 240 V switching power supply	DC 12 – 15 V. External AC 100 – 240 V switching power supply	DC 12 – 15 V. External AC 100 – 240 V switching power supply	DC 12 – 15 V. External AC 100 – 240 V switching power supply
Dimensions	210 × 44 × 162 mm (W × H × D)	210 × 44 × 162 mm (W × H × D)	420 × 44 × 162 mm (W × H × D)	420 × 44 × 162 mm (W × H × D)
Weight	Approx. 0.7 kg	Approx. 0.8 kg	Approx. 1.4 kg	Approx. 1.6 kg

Download

User Guide
	ACT-5800 Series	5.8 GHz Receivers (ACT-5801 / ACT-5802 / ACT-5812A / ACT-5814A)	7.27M \| 2023/09/26

DOC
	ACT-5801	ISM 5 GHz 1/2U Single-Channel Digital Receiver	0.38M \| 2021/08/11
	ACT-5802	ISM 5 GHz 1/2U Dual-Channel Digital Receiver	0.38M \| 2021/08/11


ACT-5801	5 GHz Digital Single-Channel Receiver (Ver.2024)	0.21M \| 2024/03/19
ACT-5802	5 GHz Digital Dual-Channel Receiver (Ver.2024)	0.24M \| 2024/03/19
ACT-5812A	5 GHz Digital Dual-Channel Receiver (Ver.2024)	0.24M \| 2024/03/19
ACT-5814A	5 GHz Digital Quad-Channel Receiver (Ver.2024)	0.28M \| 2024/03/19

ACT-5801 5 GHz Digital Single-Channel Receiver

Product Introduction

Related Videos

How to do ACT sync｜MIPRO ACT-5800 ACT-2400 Series

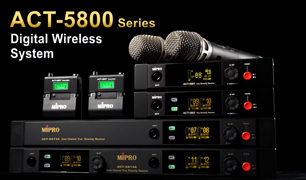

ACT-5800 Series Digital Wireless System

MIPRO ACT-5800 Series Products｜Panels & Screen Display｜Related Products

MIPRO ACT-5800 Series Group & Channel｜ID-Code

MIPRO ACT-5800 Series Audio Signal Output｜Audio Gain｜Low Cut

MIPRO ACT-5800 Series Auto Wake Up

MIPRO ACT-5800 Series Channel Scan

MIPRO ACT-5800 Series Set Lock

MIPRO ACT-5800 Series Antenna System｜Daisy-chained Antennas
