ACT-300 Series ACT-300

ACT-311

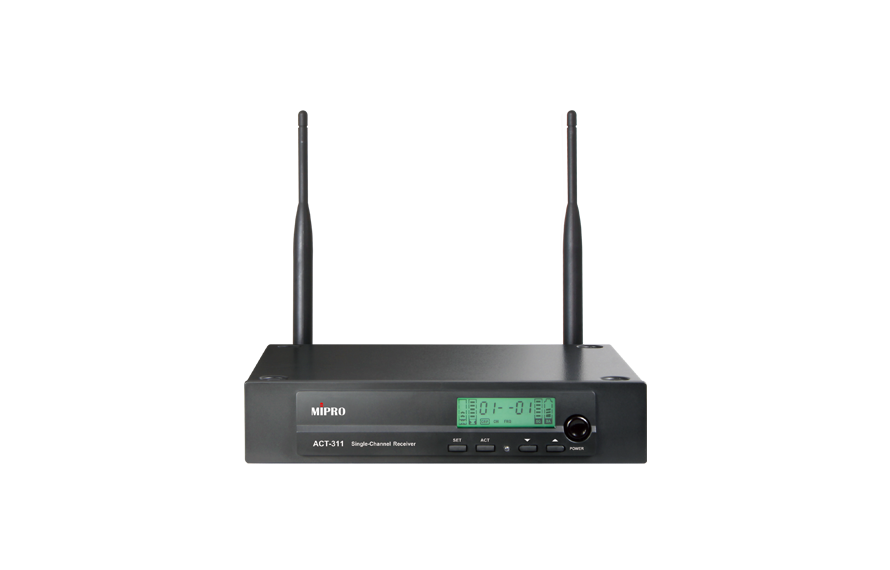

ACT-312
ACT-323
ACT-343

Product Name : ACT-300 Series

*The product images and specifications shown on our website may differ from the actual products due to different versions.

UHF

LCD

EIA standard metal chassis equipped with a green backlit LCD screen and electronic buttons on the front panel. The LCD screen will automatically turn bright to identify “Working” or “Standby” mode.
The most reliable 24 MHz narrowband high dynamic range receiving circuit greatly decreases intermodulation distortion and increases interference-free compatible channels.
Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose 8 working channels from 961 available frequencies.
Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
All are designed and made in Taiwan to ensure high quality and value.

Q'ty :

Inquiry

Product Introduction

Model	ACT-311	ACT-312	ACT-323	ACT-343
Name	UHF Analog Single-Channel Receiver	UHF Analog Dual-Channel Receiver	UHF Analog Dual-Channel Receiver	UHF Analog Quad-Channel Receiver
Channel	Single	Dual	Dual	Quad
Chassis	EIA standard half-rack (9.5") metal chassis	EIA standard half-rack (9.5") metal chassis	EIA standard full-rack (19") metal chassis	EIA standard full-rack (19") metal chassis
Frequency Range	UHF 480 – 934 MHz (country dependent)	UHF 480 – 934 MHz (country dependent)	UHF 480 – 934 MHz (country dependent)	UHF 480 – 934 MHz (country dependent)
Bandwidth	24 MHz	24 MHz	24 MHz	24 MHz
Receiving Mode	Diversity	Diversity	Diversity	Diversity
Sensitivity	10 dBμV @ S/N > 80 dB	10 dBμV @ S/N > 80 dB	10 dBμV @ S/N > 80 dB	10 dBμV @ S/N > 80 dB
Frequency Response	50 Hz – 18 kHz	50 Hz – 18 kHz	50 Hz – 18 kHz	50 Hz – 18 kHz
Dynamic Range	> 106 dBA	> 106 dBA	> 106 dBA	> 106 dBA
Audio Output	Balanced: +16 dB / 0 dB / -6 dB, Unbalanced: +10 dB / 0 dB / -6 dB	Balanced: +16 dB / 0 dB / -6 dB, Unbalanced: +10 dB / 0 dB / -6 dB	Balanced: +16 dB / 0 dB / -6 dB, Unbalanced: +10 dB / 0 dB / -6 dB	Balanced: +16 dB / 0 dB / -6 dB, Unbalanced: +10 dB / 0 dB / -6 dB
Antenna	50Ω TNC female connector provides bias for the MIPRO antenna systems	50Ω TNC female connector provides bias for the MIPRO antenna systems	50Ω TNC female connector provides bias for the MIPRO antenna systems	50Ω TNC female connector provides bias for the MIPRO antenna systems
Power Supply	DC 12 – 15 V. External AC 100 – 240 V switching power supply	DC 12 – 15 V. External AC 100 – 240 V switching power supply	DC 12 – 15 V. External AC 100 – 240 V switching power supply	DC 12 – 15 V. External AC 100 – 240 V switching power supply
Dimensions	210 × 44 × 165 mm (W × H × D)	210 × 44 × 165 mm (W × H × D)	420 × 44 × 164 mm (W × H × D)	420 × 44 × 164 mm (W × H × D)
Weight	Approx. 0.8 kg	Approx. 0.9 kg	Approx. 1.4 kg	Approx. 1.7 kg
